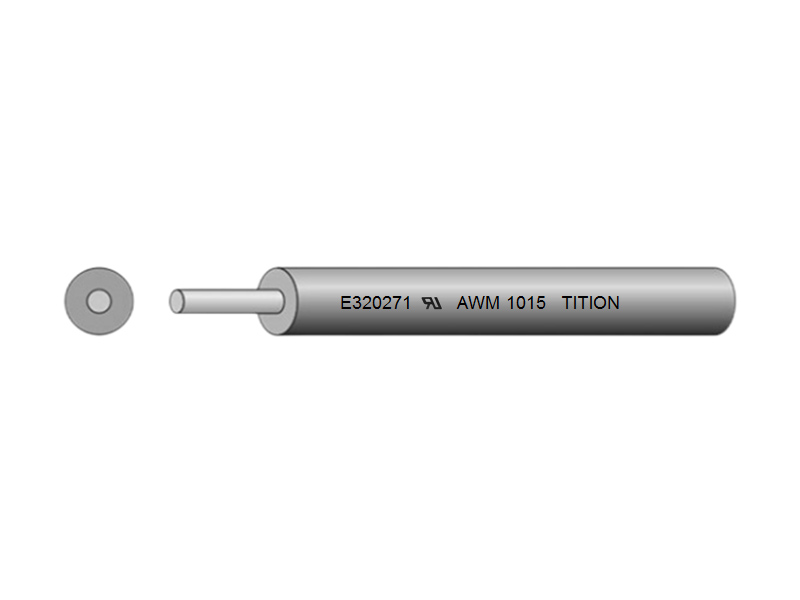

说明
额定温度：105ºC
额定电压：600V AC
标准：UL758,UL1581及CSA22.2 No.210.2
导体：单根或绞合铜线镀锡铜丝
绝缘：聚氯乙烯
通过VW-1及CUL FT1垂直耐燃连线
环保要求：RoHS & REACH
应用
产品广泛用于电器设备内部连接线
参数
| Conductor 导体 | Insulation 绝缘 | Maximun Resistance at 20℃ 20℃最大导体电阻Ω/km | |||
| AWG 线规 | No./mm 线数/线径 | Nom.Dia. 外径 mm | Nom.Thick. 平均厚度 mm | Average 参考外径 mm | |
| 3/0 | 1672/0.254 | 12.80 | 2.00 | 16.80 | 0.2194 |
| 2/0 | 1372/0.254 | 11.58 | 2.00 | 15.60 | 0.2766 |
| 1/0 | 1045/0.254 | 10.12 | 2.00 | 14.20 | 0.3487 |
| 1 | 837/0.254 | 9.15 | 2.00 | 13.20 | 0.4398 |
| 2 | 665/0.254 | 8.16 | 1.52 | 11.30 | 0.5548 |
| 3 | 526/0.254 | 7.30 | 1.52 | 10.40 | 0.6996 |
| 4 | 420/0.254 | 6.00 | 1.52 | 9.50 | 0.882 |
| 6 | 266/0.254 | 4.80 | 1.52 | 8.40 | 1.403 |
| 8 | 168/0.254 | 3.80 | 1.14 | 6.50 | 2.23 |
| 10 | 105/0.254 | 3.00 | 0.76 | 4.70 | 3.546 |
| 12 | 65/0.254 | 2.36 | 0.76 | 4.00 | 5.64 |
| 14 | 41/0.254 | 1.87 | 0.76 | 3.50 | 8.96 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 14.6 |
| 18 | 41/0.16 | 1.17 | 0.76 | 2.80 | 23.2 |
| 20 | 26/0.16 | 0.94 | 0.76 | 2.60 | 36.7 |
| 22 | 17/0.16 | 0.76 | 0.76 | 2.40 | 59.4 |
| 24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.2 |
