说明
额定温度：90ºC
额定电压：0.6/1kV
标准：AS/NZS 5000.1
导体：符合AS/NZS1125标准1类，2类或5类铜丝
绝缘：符合AS/NZS 3808标准
满足AS/NZS 5000.1阻燃要求
环保要求：RoHS & REACH;
应用

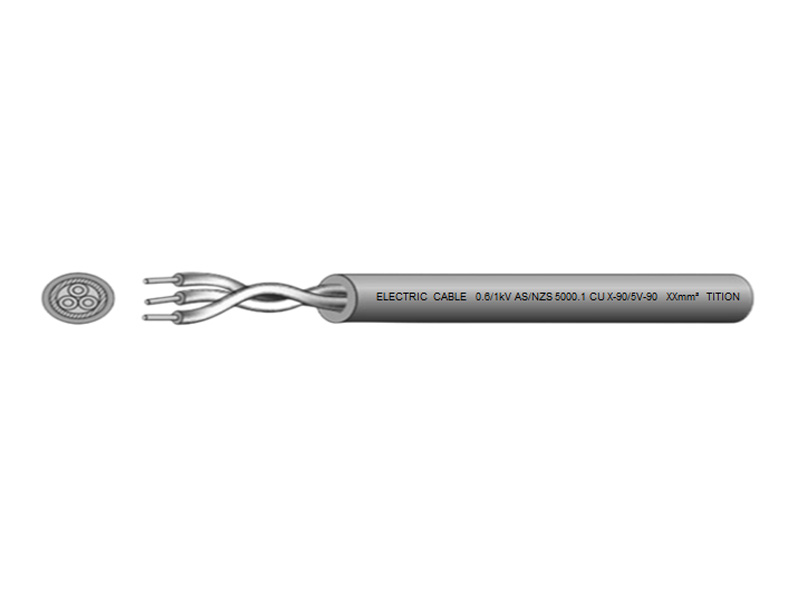

0.6/1(1.2)kV单芯或多芯聚合物绝缘护套电线电缆
产品参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 护套 | |||||
| AWG | Core.Number | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | ||
| 线规 | 电缆芯数 | 平均厚度 | 参考外径 | |||
| mm | mm | |||||
| 2.50 | 2× | 0.70 | 7.20 | 7.98 | ||
| 3× | 0.70 | 7.80 | ||||
| 4× | 0.70 | 8.70 | ||||
| 4.00 | 2× | 0.70 | 8.40 | 4.95 | ||
| 3× | 0.70 | 9.10 | ||||
| 4× | 0.70 | 10.20 | ||||
| 6.00 | 2× | 0.70 | 9.60 | 3.30 | ||
| 3× | 0.70 | 10.40 | ||||
| 4× | 0.70 | 11.60 | ||||
| 10.00 | 2× | 0.70 | 11.60 | 1.91 | ||
| 3× | 0.70 | 12.50 | ||||
| 4× | 0.70 | 14.00 | ||||
